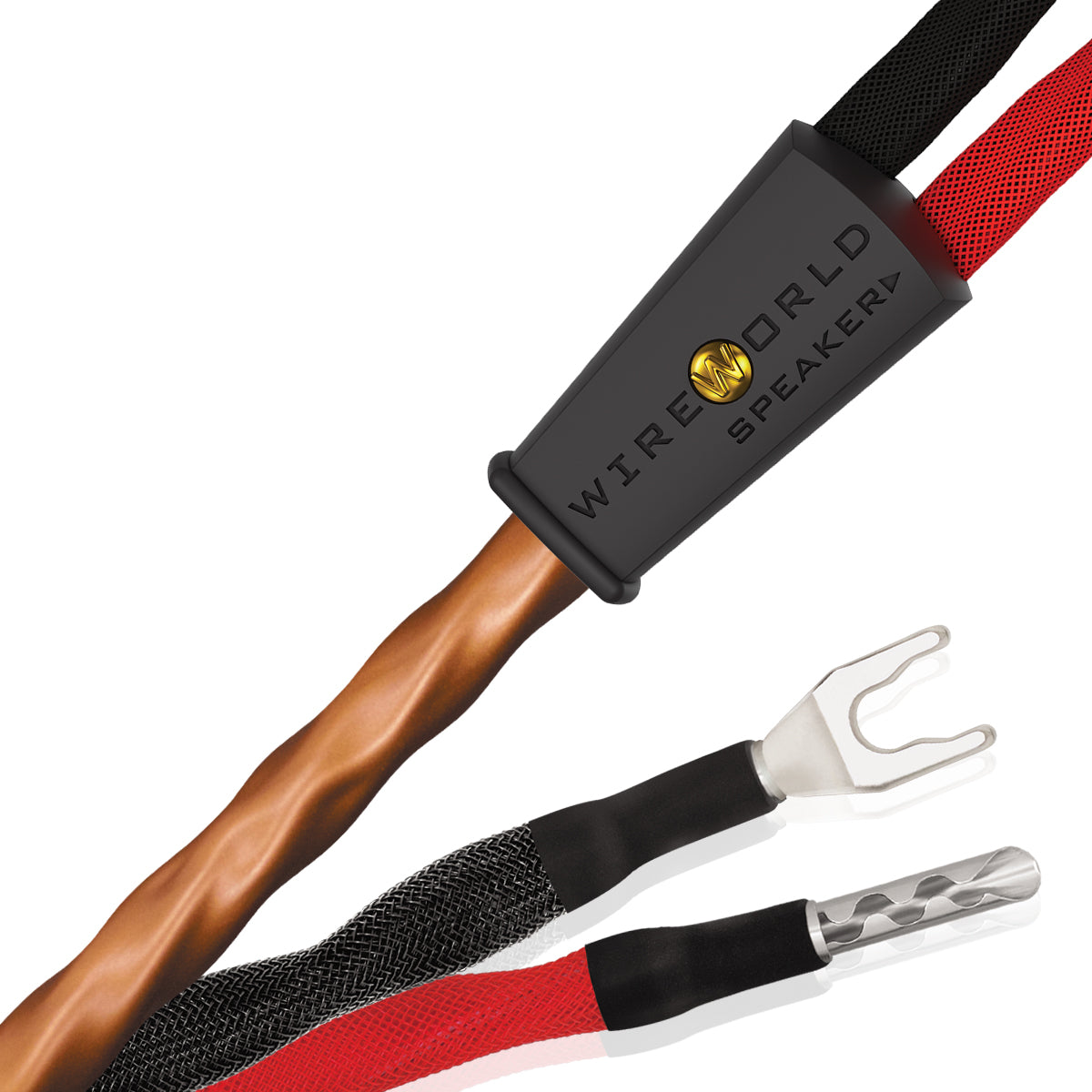

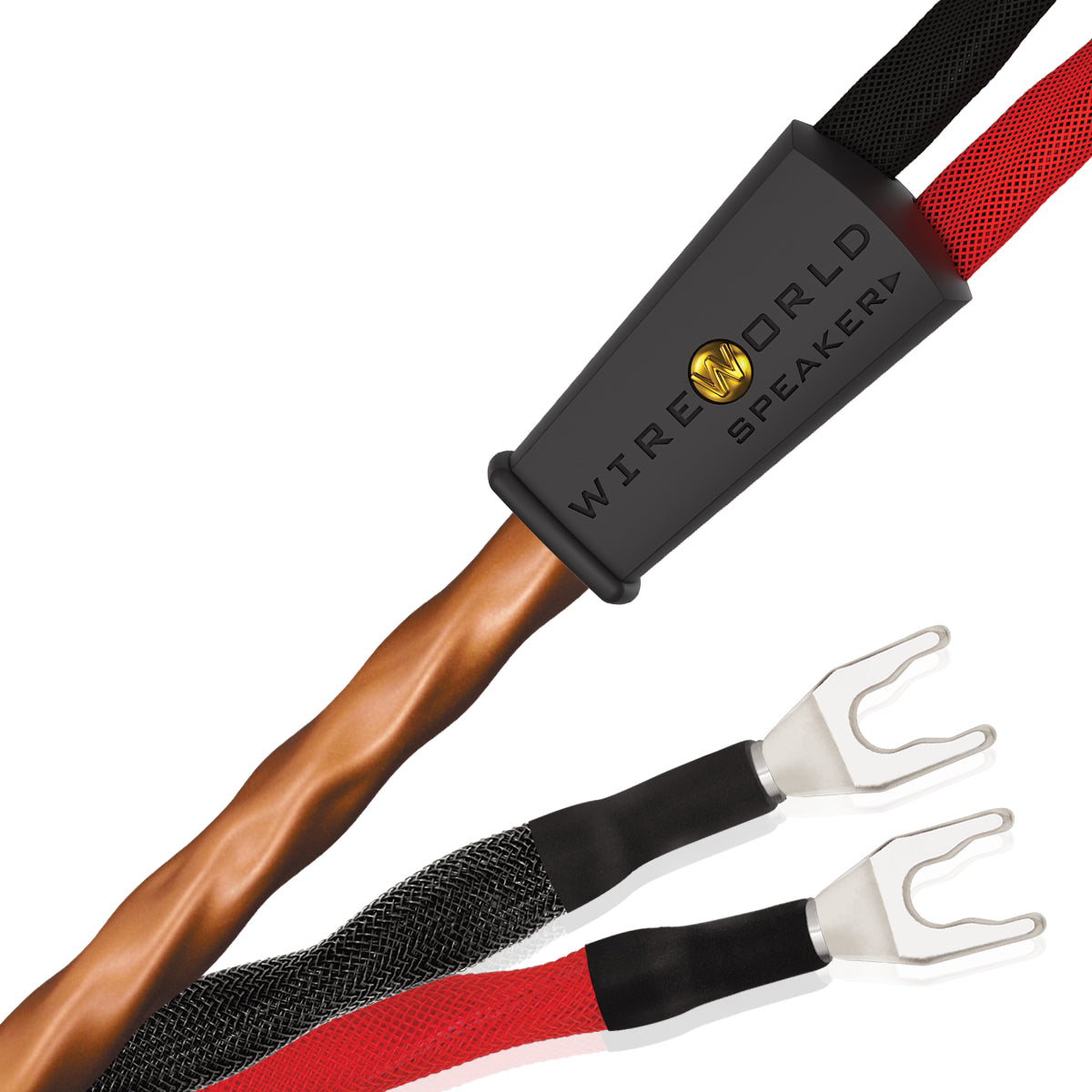

Mini Eclipse™ 10 Speaker Cable

Mini Eclipse 10 is a compact reference speaker cable that uses the patented Quad DNA Helix design with the purest OCC-7N copper wires to produce a rich dynamic sound that elevates the fidelity of high-end speakers and studio monitors as well as custom installations. With twice as many strand groups as Mini Eclipse 8, this cable sounds more alive in every way. Mini Eclipse 10 is especially helpful in maximizing the performance of compact two-way speakers. This flexible 13AWG wire is ideal for listeners who want a reference quality cable suitable for concealment, internal wiring or any speakers that demand the superb articulation of the Quad DNA HELIX design.

DESIGN
Quad DNA HELIX®

SIGNAL CONDUCTORS
4 Conductors • 32 Insulated Strands
Gauge: 13AWG / 2.5 sq.mm

CONDUCTOR MATERIAL
OCC®-7N Copper

INSULATION
COMPOSILEX® 5

PLUG CONTACTS
Silver-clad Uni-Term

SPECIFICATIONS
Cable Diameter: 9.5mm/0.38"  |  Plug Diameter: 28mm/1.1"

PART CODE: MES10

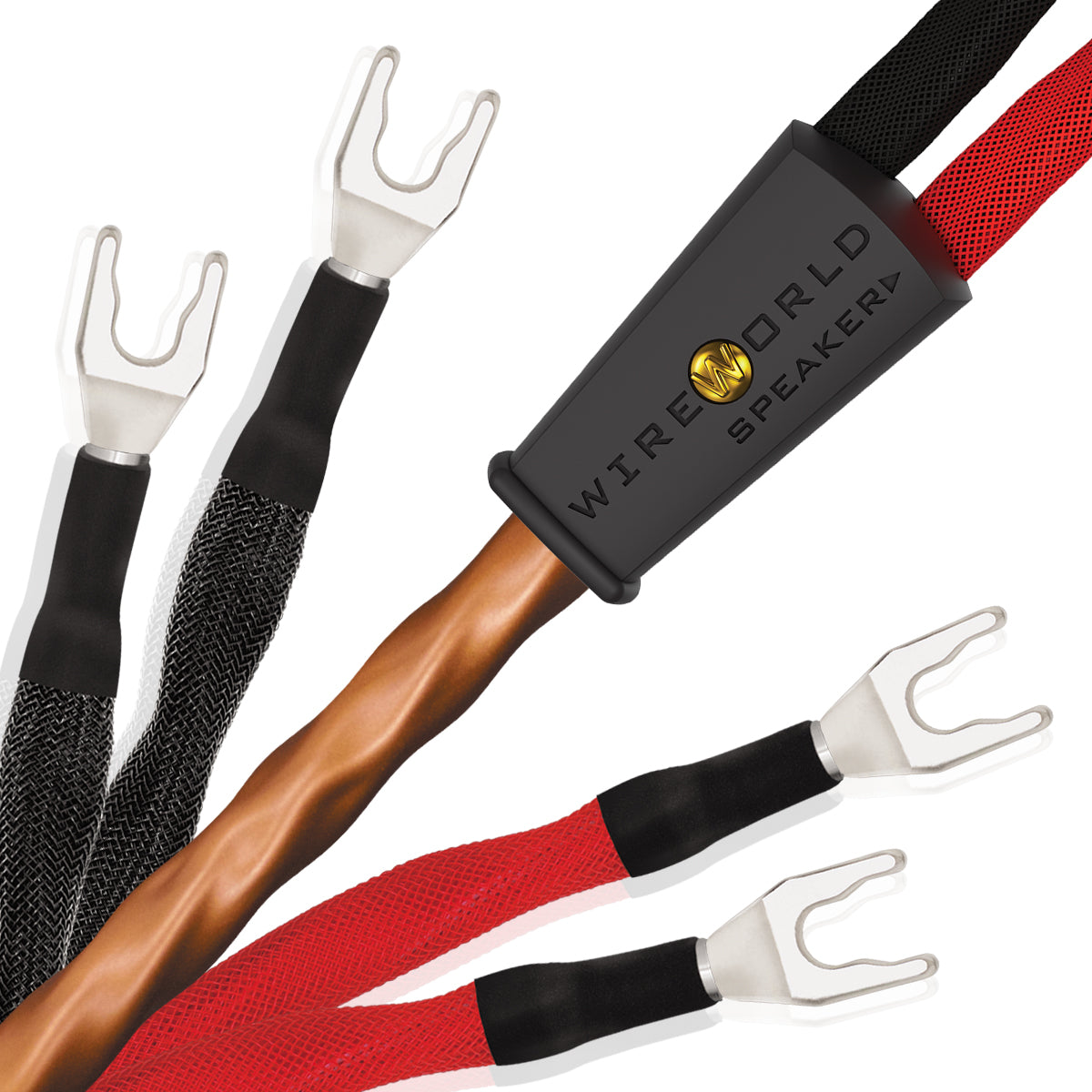

NOTE: Standard or Biwire (Bi wire, Bi-wire) termination available. Cables can be finished with shrink tubing instead of shells for easier wall installation if requested. You can also purchase Mini Eclipse 10 Speaker Cable in custom lengths, termination configurations, single cable, and bulk spools. For pricing or to order, please contact us directly @ (954) 474-4464.
